Tower Panel (16 Antennas)[edit | edit source]
secondrun script[edit | edit source]
The secondrun script is executed to check and update the M6E firmware to the latest version.
NA:
wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/carefusion/vr-towerpanel-secondrun.sh -O - | sh
ETSI:
wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/carefusion/vr-towerpanel-secondrun-ETSI.sh -O - | sh
Downgrade M6e Firmware
cd /tmp && curl http://readonly:secret@svn.ventureresearch.com/svn/linux/testing/thingmagic/m6e/update-m6e-reader_v1.21.1.1e.sh | bash && rm /home/user/m6efirmware.sim
Interface Board[edit | edit source]
Download flash script to testing linux board
wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/vr/vr-eeprom-i2c.sh -O /home/user/vr-eeprom-i2c.sh

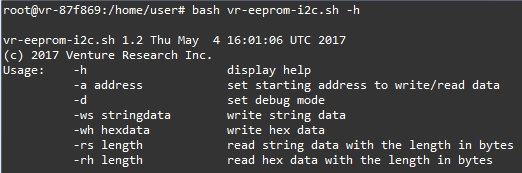

The usage of the flash script is shown.
Test Controller 10.16.6.12[edit | edit source]
Set Region[edit | edit source]
As to ETSI Tower Panel, set region as EU3 before test:
- restart rfid service to load default settings
systemctl restart rfid
- set region
set region eu3 commit exit
- restart rfid service
Once complete the test, set region back to NA.
