EmbeddedCAN-uCApplication

Programming Microcontroller Application

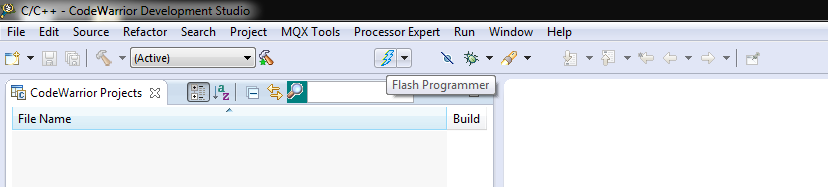

• Click the blue icon of a lightning bolt, which is the “Flash Programmer”.

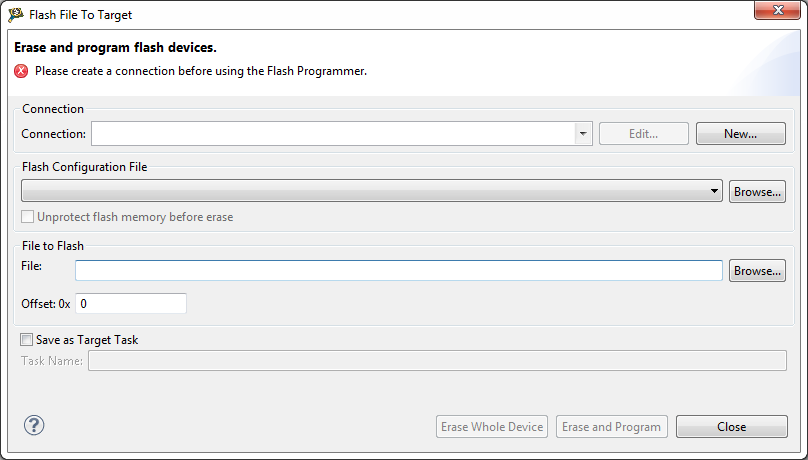

• Under Connection, click New…

NOTE: If this window already resembles the one in Step 5, continue from Step 5.

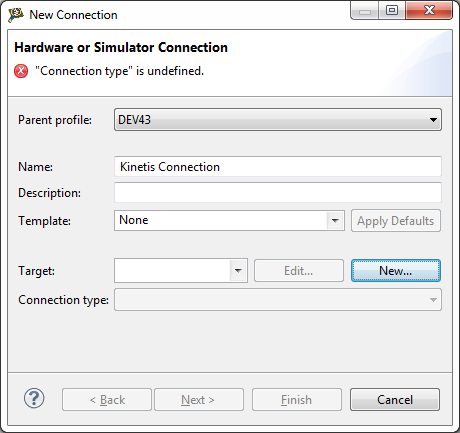

• Under Name:, enter “Kinetis Connection”. Under Target, click New….

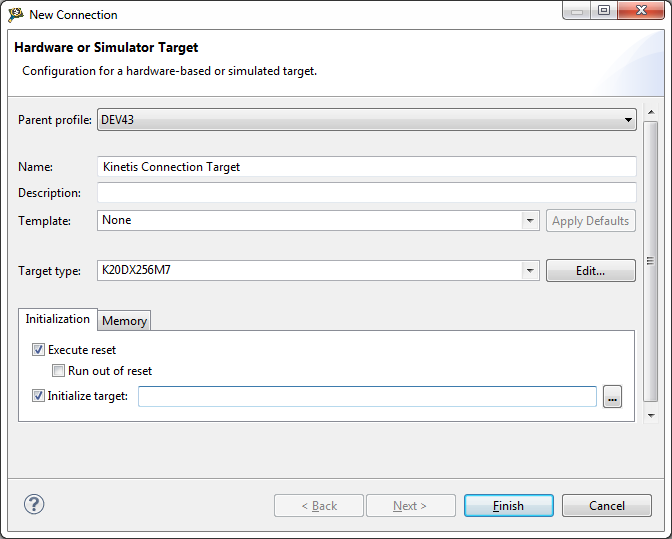

• Enter the information as seen below. For 'Initialization target', select the path as: (In this case, the user was ‘sam’, but this may vary between different PC’s.) C:\Users\sam\svn\projects\linuxboarduC\linuxboard4.x\Debugger\init_kinetis.tcl

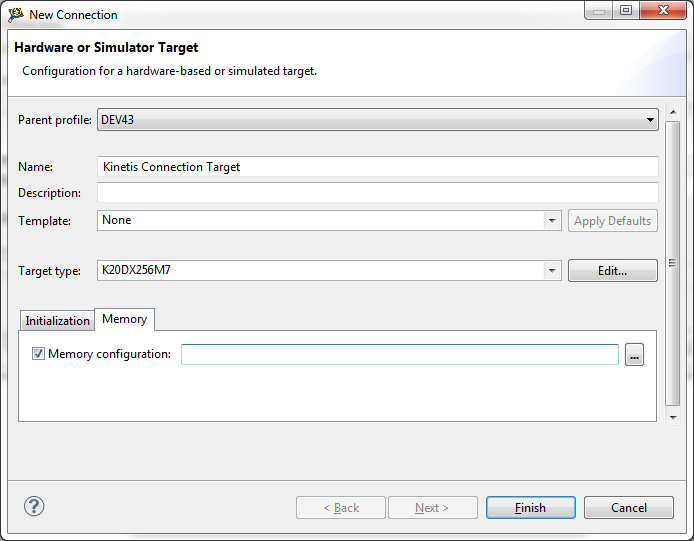

Under the Memory tab, for 'Memory Configuration', select the path as: (In this case, the user was ‘sam’, but this may vary between different PC’s.) C:\Users\sam\svn\projects\linuxboarduC\linuxboard4.x\Debugger\K20DX256M7.mem

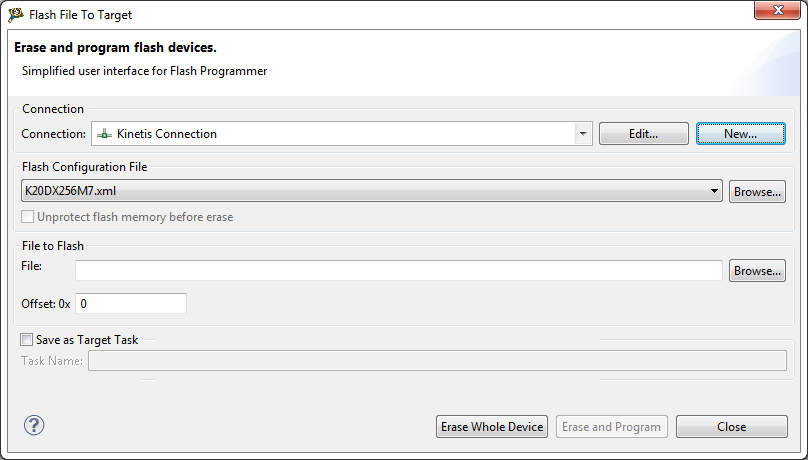

• Click Finish. Then, specify the File to Flash. (This file depends on the product!)

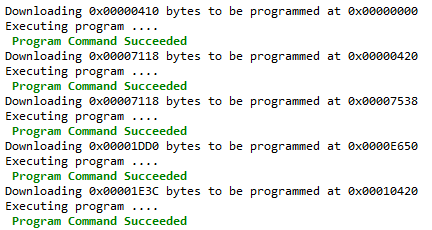

• Click Erase and Program. After a few moments, the console window should display "Program Command Succeeded".

• Reset the microcontroller using the reset button.
