InnovaZones[edit | edit source]
Data Hoop[edit | edit source]
Hardware[edit | edit source]
- VR Linuxboard 5.2b
- HF Badge Reader
- UHF Hoop Reader with 2 Antennas
Log into Unit[edit | edit source]
Open the "Command Prompt", run the command to find the IP:
ping vr-XXXXXX.local -4

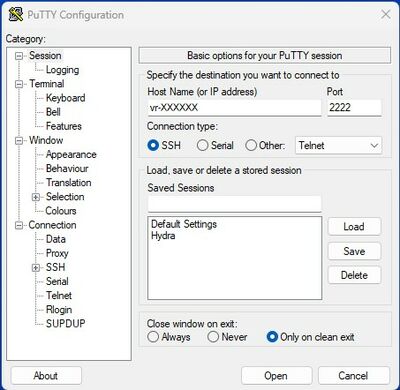

Use Putty and SSH vr-XXXXXX.local Port 2222
Customer Specific Configuration[edit | edit source]
wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/innovazones/datahoop-secondrun-sumo.sh -O - | sh
VRHM Test[edit | edit source]
Look for the device ip address from the website https://device.ventureresearch.com/.
Login to the reader, stop the app before the test:
systemctl stop datahoop
systemctl restart rfid
Open the VRHM, select the test: InnovaZones Data Hoop [Prebox].
Fix the Issue of Python Libraries[edit | edit source]
cd /opt/innovazones_datahoop source venv/bin/activate pip install --trusted-host pypi.org --trusted-host pypi.python.org --trusted-host files.pythonhosted.org -r requirements.txt
Data Hoop - 3 Antenna Version[edit | edit source]
Hardware[edit | edit source]
- VR Linuxboard 5.2b
- HF Badge Reader
- UHF Hoop Reader with 3 Antennas
- 2 Input sensors (tuning before the test)
Customer Specific Configuration[edit | edit source]
wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/innovazones/datahoop3-secondrun-sumo.sh -O - | sh
VRHM Test[edit | edit source]
Look for the device IP Address from the website https://device.ventureresearch.com/.
Login to the reader, stop the app before the test:
systemctl stop datahoop
Open the VRHM, select the test: InnovaZones Data Hoop - 3 Antenna [Prebox].
Vault Reader[edit | edit source]
Hardware[edit | edit source]
- VR Linuxboard 5.2c
Customer Specific Configuration[edit | edit source]
wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/innovazones/vault-secondrun-sumo.sh -O - | sh
or
wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/innovazones/vault-secondrun-reader.sh -O - | sh
Curve[edit | edit source]
Hardware[edit | edit source]
- VR Shelf Board 1.1 + M6e Micro + 1 Antenna
- HF Badge Reader (External)
Customer Specific Configuration[edit | edit source]
wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/innovazones/iz-curve-secondrun.sh -O - | sh
VRHM Test[edit | edit source]
Test same as a standard curve
