Operative IQ Profiles and Second Run Scripts[edit | edit source]

Operative IQ Profiles and Second Run Scripts
OperativeIQ Profiles VR Device VR Accessories Secondrun Link
VEHICLE-VR4-MUX VR 4 Port Reader 16 Port Multiplexer #VEHICLE-VR4-MUX
VEHICLE-VR4 VR 4 Port Reader #VEHICLE-VR4
VEHICLE-VR8 VR 8 Port Reader

(4 Port RF Module)

#VR8C or VR8DC
NARCOTICS-S1 VR 4 Port Reader 16 Port Multiplexer #NARCOTICS-S1 - VR4E
NARCOTICS-S1 VR Curve Reader #NARCOTICS-S1 - VR Curve Reader
NARCOTICS-S1 VR Curve Reader w/ 1 Ext Antenna
NARCOTICS-S1 VR Surface Reader

(31x17, 8 Antennas)

NARCOTICS-S1 VR Surface Reader

(18x16, 4 Antennas)

#NARCOTICS-S1 - VRSRP4
NARCOTICS-S2 VR Surface Reader

(50x21, 14 Antennas)

#NARCOTICS-S2 - VRSRP14
NARCOTICS-S2 VR Curve Reader w/ 1 Ext Antenna #NARCOTICS-S2 - VR Curve Reader
NARCOTICS-S2 VR Surface Reader

(31x17, 8 Antennas)

NARCOTICS-S2 VR 8 Port Reader #NARCOTICS-S2 - VR8
ASSETS-MAINT VR Curve Reader #ASSETS-MAINT - Curve
ASSETS-MAINT VR 24-Ant Surface Reader #ASSETS-MAINT - VR24P
ASSETS-PORTAL VR Curve Reader #ASSETS-PORTAL - Curve
ASSETS-PORTAL-2 VR 2Port Reader #ASSETS-PORTAL - VR2
ASSETS-PORTAL-4 VR 4Port Reader #ASSETS-PORTAL - VR4
SMARTSHELF Smart Shelves

Customer Specific Configuration[edit | edit source]

After completing VR Hardware Manager Tests using generic scripts for unit configuration, run one of the following commands to load EMS settings, configuration, and apps.

VR Readers[edit | edit source]

NARCOTICS-S1 - VR4E[edit | edit source]

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/NARCOTICS-S1-VR4E-secondrun.sh -O - | sh

NARCOTICS-S1 - VR Curve Reader[edit | edit source]

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/NARCOTICS-S1-Curve-secondrun.sh -O - | sh

NARCOTICS-S2 - VR Curve Reader[edit | edit source]

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/NARCOTICS-S2-Curve-secondrun.sh -O - | sh

4-Port Readers[edit | edit source]

ASSETS-PORTAL - VR2[edit | edit source]

2-Port Reader

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/ASSETS-PORTAL-VR2-secondrun.sh -O - | sh

ASSETS-PORTAL - VR4[edit | edit source]

4-Port Reader

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/ASSETS-PORTAL-VR4-secondrun.sh -O - | sh

VR4C or VR4DC[edit | edit source]

4-Port Reader with GPS

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/vr-4port-gps-secondrun.sh -O - | sh

VEHICLE-VR4[edit | edit source]

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/VEHICLE-VR4-secondrun.sh -O - | sh

VEHICLE-VR4-MUX[edit | edit source]

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/VEHICLE-VR4-MUX-secondrun.sh -O - | sh

8-Port Readers[edit | edit source]

NARCOTICS-S2 - VR8[edit | edit source]

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/NARCOTICS-S2-VR8P-secondrun.sh -O - | sh

VR8 or VR8D[edit | edit source]

8-Port Reader

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/vr-8port-secondrun.sh -O - | sh

VR8C or VR8DC[edit | edit source]

8-Port Reader with GPS

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/vr-8port-gps-secondrun.sh -O - | sh

Write "Operative IQ 8-Port w/GPS Script" on top right of Checklist.

Final Check[edit | edit source]

Plug in banner light, RF cables, Wi-Fi Antennas, and GPS if available:

log into unit

Verify VRSN and Hostname matches paperwork and Hostname Label.

cat /etc/venture-build-info

verify script ran and added "hardware_type=VR8CReader" to the end of the list

nmcli dev wifi

ensure minimum Signal value is above 64.

nc localhost 2020

tc

look for RFID Tags

Verify Banner light is on with red light and blinking yellow

Verify Power Sensors are blinking blue LEDs

exit

ifconfig

Check for both TUN0 and TUN1 connections

Connect to the unit over OpenVPN using Hydra

nc localhost 2020

set extled aux1 on 5

exit

Verify red light stays on for a little bit then blinks with just green light.

cgps -s

Verify there are coordinates and satellites listed after a five second delay

Once complete, write "Checked" , your initials, and today's date below the "Operative IQ 8-Port w/GPS Script" on top right of Checklist.

Press "Ctrl+C"

exit

Check VRSN list inside VR Asset Manager

Special Consideration when using LINUX 4.4 Board with POE[edit | edit source]

check for newer m6e hwversion: 18.00.00.04

RFID HWVERSION

apply fix for low tag read distance

SET TARI 6.25
SET BLF 640khz


VR SurfaceReaders[edit | edit source]

VR Curve[edit | edit source]

VR Curve using External Banner Light[edit | edit source]

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/vr-curve-secondrun-4.3.sh -O - | sh

VR Curve using internal PWM LEDs[edit | edit source]

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/vr-curve-secondrun-4.3.sh -O - | sh
wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/py-cron-curve.py -O /home/user/py-cron-curve.py
sed -i -e 's#py-cron-externalleds#py-cron-curve#g' /var/spool/cron/root

ASSETS-PORTAL - Curve[edit | edit source]

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/ASSETS-PORTAL-Curve-secondrun.sh -O - | sh

ASSETS-MAINT - Curve[edit | edit source]

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/ASSETS-MAINT-Curve-secondrun.sh -O - | sh

ASSETS-MAINT - VR24P[edit | edit source]

VR 24 Antenna Surface Panel

  • Run the Xerafy secondrun prior to running this
wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/ASSETS-MAINT-VR24P-secondrun.sh -O - | sh

4 Antenna SurfaceReader[edit | edit source]

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/vr-4antsurface-secondrun.sh -O - | sh

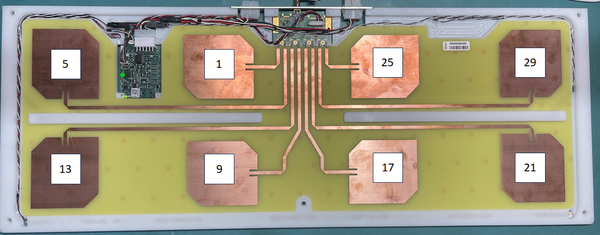

8 Antenna SurfaceReader[edit | edit source]

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/vr-8antsurface-secondrun.sh -O - | sh

12 Antenna SurfaceReader[edit | edit source]

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/vr-12antsurface-secondrun.sh -O - | sh

NARCOTICS-S1 - VRSRP4[edit | edit source]

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/NARCOTICS-S1-VRSRP4-secondrun.sh -O - | sh

NARCOTICS-S2 - VRSRP14[edit | edit source]

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/NARCOTICS-S2-VRSRP14-secondrun.sh -O - | sh

Custom Products[edit | edit source]

VR UltraSlimtrak? Locker[edit | edit source]

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/vr-ultraslimtrak-locker-secondrun.sh -O - | sh

Long 4 port reader (IQ Genius)[edit | edit source]

(Original OperativeIQ IQ Genius Reader with 2-Pin power reversed)

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/vr-secondrun-4.3.sh -O - | sh

2.5cu Fridge with Lock[edit | edit source]

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/vr-fridge-secondrun.sh -O - | sh

-- setup backwall --
nc localhost 2020
GET INVENTORY
SET MUX 1 3 5 7
SET READTIMEOUT 500
SET ASYNCOFFTIME 250
SET POWERBASE 25
SET SESSIONVAL 1
SET TAGMETADATA2 DATA

vi /opt/emsrefrigerator/config.toml
set vrSerial to the vrserial of the controller

Large Refrigerator[edit | edit source]

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/ems-large-secondrun.sh -O - | sh


VR Shelf System[edit | edit source]

VR Blue Box Reader VR8HE (CAN MUX)[edit | edit source]

Set VRSerial for the MiniIO that's inside the VR 8 Port Reader:

VRSN170 SET VRSERIAL xxxxx
CAN RESET

8 Port Reader with Mini IO in Serializer Mode

wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/vr-8port-secondrun-shelfsystem.sh -O - | sh

Tests:

  • VRHM Test - "V2 VR8H with CAN Mux [System]"

VR Surface Reader Antenna SRAC-08+W [32x12][edit | edit source]

Set VRSerial:

VRSN170 SET VRSERIAL xxxxx
CAN RESET

Set componentid 10-80 for each shelf and attach a physical label on each Shelf 1-Shelf 8:

VRSNxxxxx SET COMPONENTID 10
VRSNxxxxx SET COMPONENTID 20
VRSNxxxxx SET COMPONENTID 30
VRSNxxxxx SET COMPONENTID 40
VRSNxxxxx SET COMPONENTID 50
VRSNxxxxx SET COMPONENTID 60
VRSNxxxxx SET COMPONENTID 70
VRSNxxxxx SET COMPONENTID 80

Enable MUX control by the MINI IO board:

VRSNxxxxx SET VRMINIIOBOARD TTLPORTMODE MUXDESERIALIZER
VRSNxxxxx COMMIT
CAN RESET

Tests:

  • SWR Test - "SurfaceReader [8] [12x32] [RFID]"
  • VRHM Test - "SurfaceReader [8] [12x32] [System]"
  • VRHM Test - "SurfaceReader [8] [12x32] [Prebox]"
  • VRHM Test - "Shelf System - 8 Shelves [System]"
  • Burnout test
cd /opt
svn co --force-interactive --username readonly --password secret http://svn.crm.ventureresearch.com/svn/linux/testing/operativeiq/ShelfSystemLoop
cd /opt/ShelfSystemLoop
cp /opt/ShelfSystemLoop/ShelfSystemLoop.service /lib/systemd/system/ShelfSystemLoop.service
systemctl daemon-reload
systemctl enable ShelfSystemLoop
systemctl start ShelfSystemLoop
  • Manual check LEDs:
VRSNxxxxx SET PWMLED ON
VRSNxxxxx SET PWMLED OFF

VRSNxxxxx SET EXTLED BUZZER1 ON
VRSNxxxxx SET EXTLED BUZZER1 OFF
