PopTracker/Lid

Materials

• 1 x VR000000 Polycase Box Lid
• 1 x VR000000 Black Patch Antenna
• 7.5" x VR000000 Double sided VHB tape for lid
• 1 x VR000000 SMA RA to SMA RA lid antenna cable

Tools

• Scissors
• SMA torque wrench
• Isopropyl Alcohol

Instructions

1. Cut VHB tape to 3.75" strips.
2. Clean backside of the antenna with alcohol.
3. Clean backside of lid with alcohol.
4. Attach the strips of tape to the sides of the antenna.

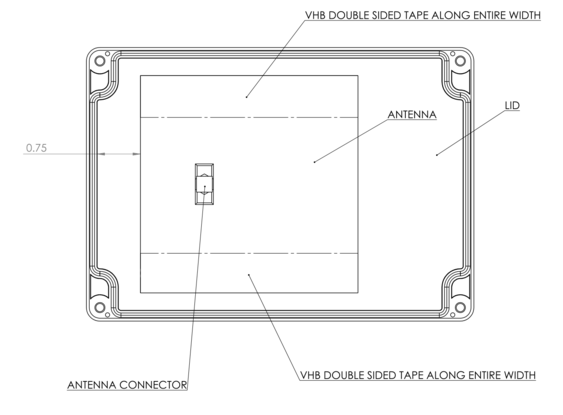

5. Place the antenna in the lid as shown in the drawing: 0.75" from the left side, and center the antenna between the top and bottom of the lid.
6. Connect the cable and tighten SMA to 8 in-lbs
7. Insert the 4 lid screws in the 4 corner holes.
