BurnIN/OUT Test Procedure

A. Setup new test

Part 1. LogTag Setup

• Plug in LogTag

• Close any data windows that pop up

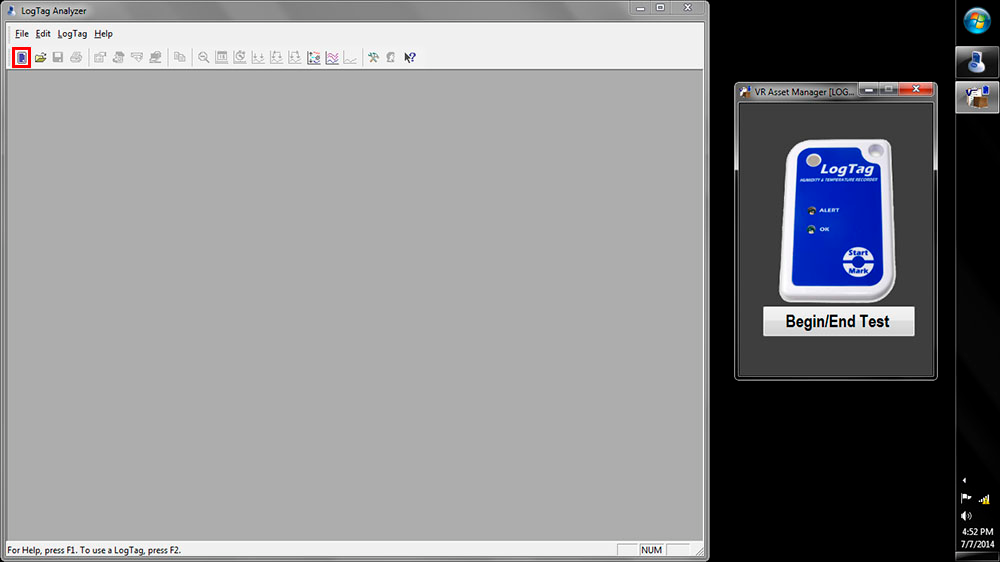

• Click Blue LogTag icon

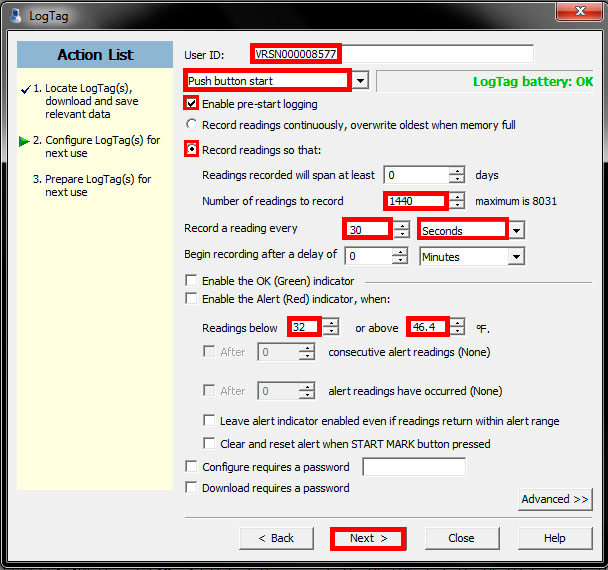

• Set temperature logging parameters?

• Click "Next"

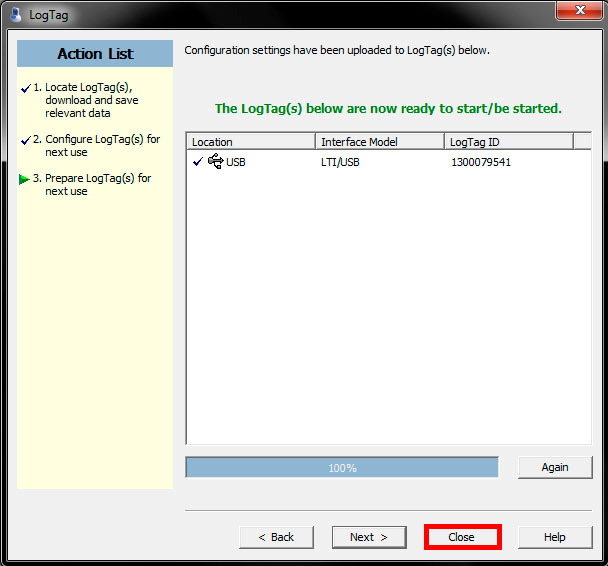

• Click "Close" (NOT "Next")

---

Part 2. Setup VR-Tests-Database

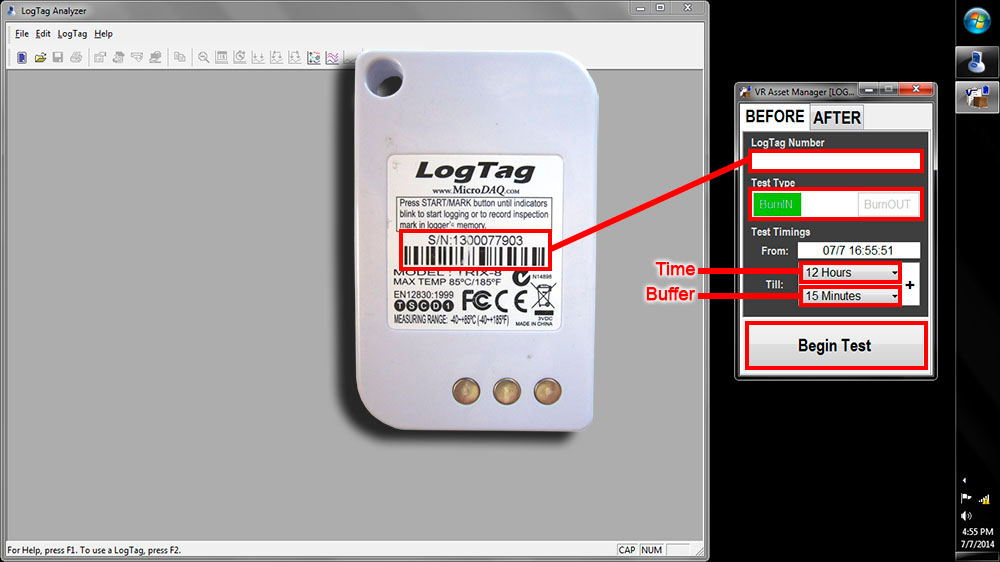

• Scan LogTag ID

• Choose "BurnIN" or "BurnOUT"

• Set Test Duration in "Time" Box

• Set "Buffer" to 30 Minutes

• Click "Begin Test"

• Scan VRSN#

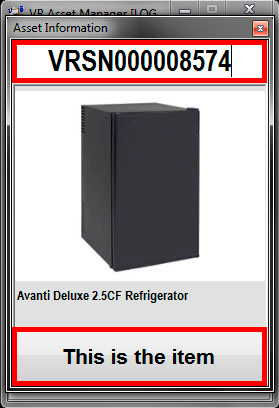

• Verify Correct Asset is Displayed

• Click "This is the item"

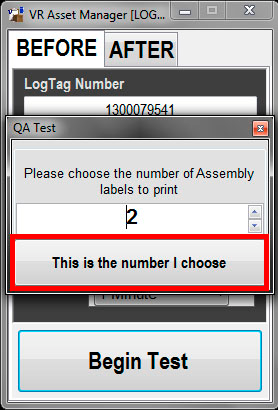

• Choose number of labels to be printed (Default: 2)

• Click "This is the number I choose"

• Click and hold "Start/Mark" button until LEDs blink

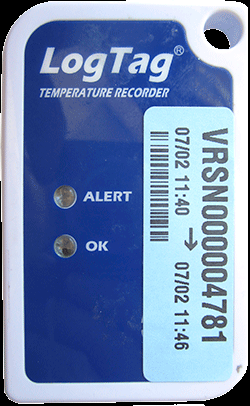

• Place one label on LogTag

• Place in designated location? inside unit

• Place other label on unit being tested

---

B. Complete existing test

Part 1. Download LogTag Data

• Plug LogTag into reader

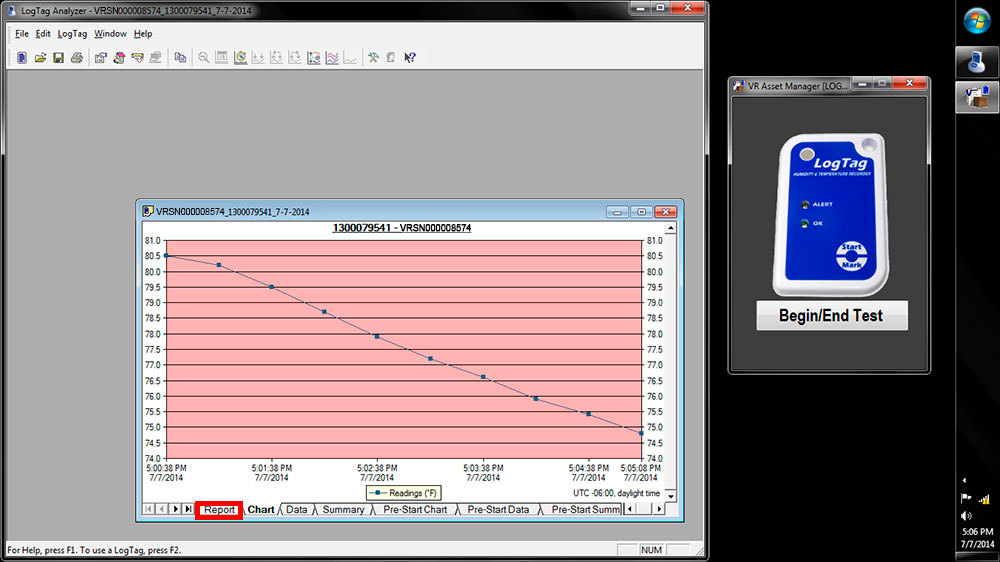

• Click "Report" Tab

• Select "File">"Print" then "OK"

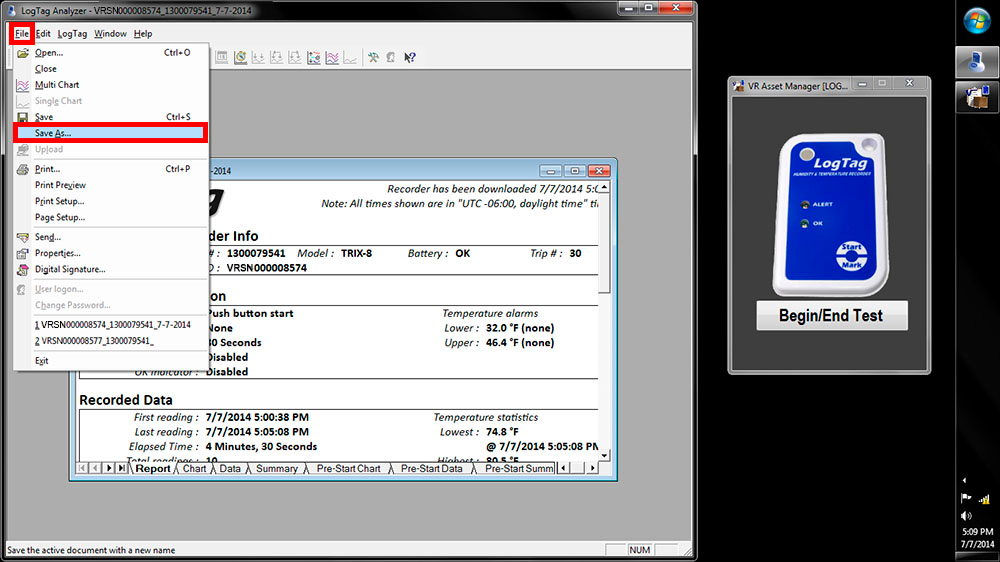

• Select "File">"Save As"

• Save as pdf

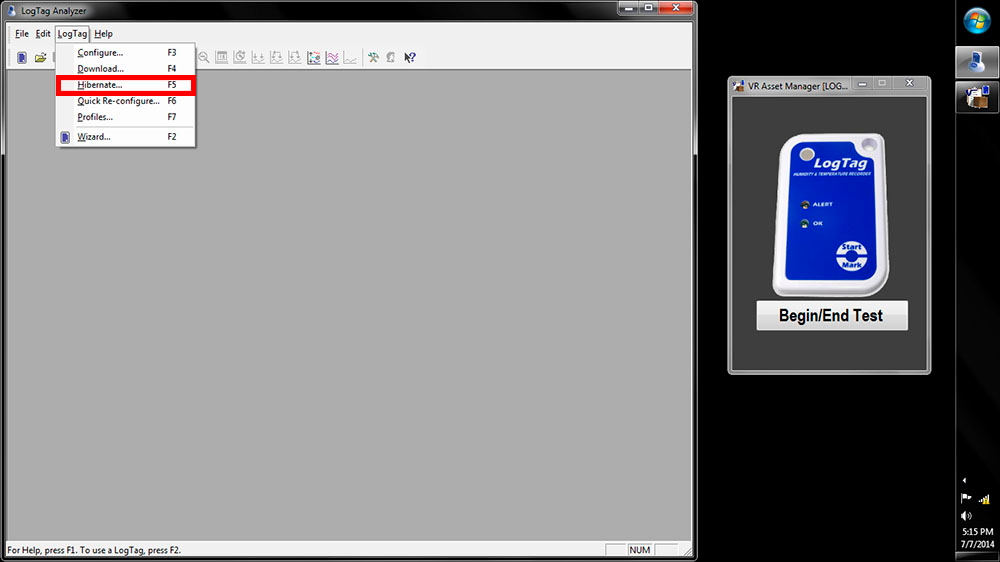

• Select "Hibernate"

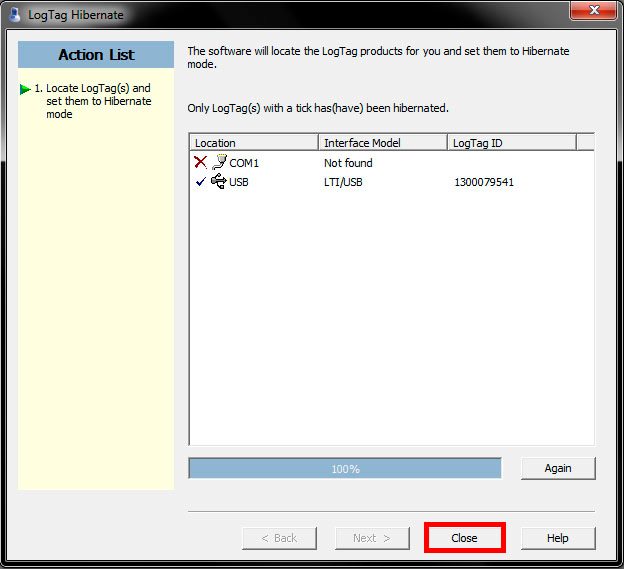

• Click "Close"

• Remove LogTag from Reader

• Place LogTag in bins

---

Part 2. Upload completed-test-data to VR-Tests-Database

• Select "After"

• Select test outcome

PASS	Unit Passes Temperature Test
FAIL	Unit fails Temperature Test
EXCEPTION	Test is Unfinished/Inconclusive
UNKNOWN	Default if no outcome is selected

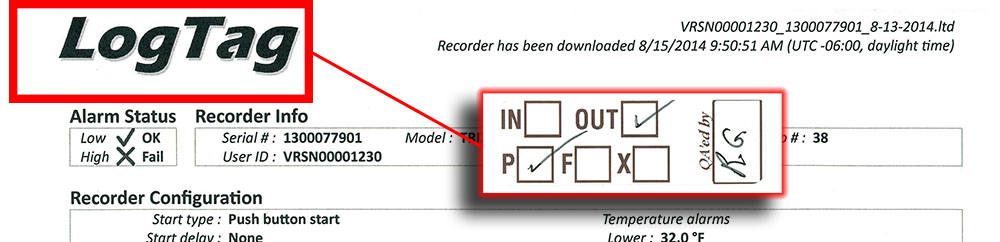

1. Apply PFX Label to Report printout over "LogTag" and fill-in appropriate check boxes

IN	BurnIN
OUT	BurnOut
P	PASS
F	FAIL
X	EXCEPTION
QA'ed by	Your intials

---
