VR-MFC Test-Procedures/ShelfReader

VRDevices Tests

This page covers all tests under the "VRDevices" app in the VR Hardware-Manager [MFC] program.

General

Opening the VRDevices App

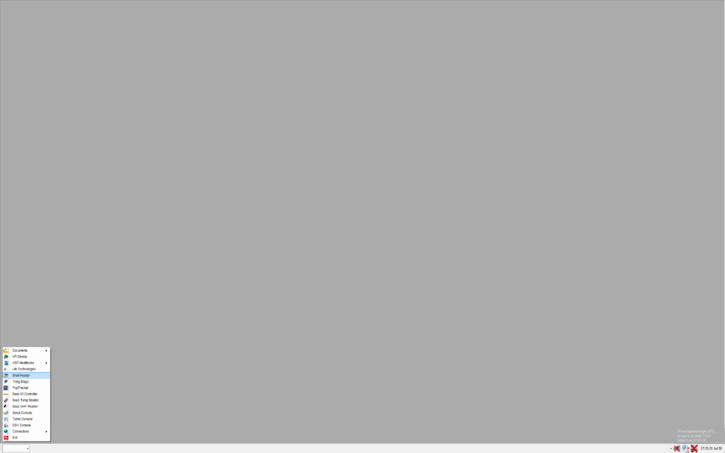

To open the VRDevices App, launch the VR Hardware-Manager program. When the program starts up, open the Start Menu, as shown here:

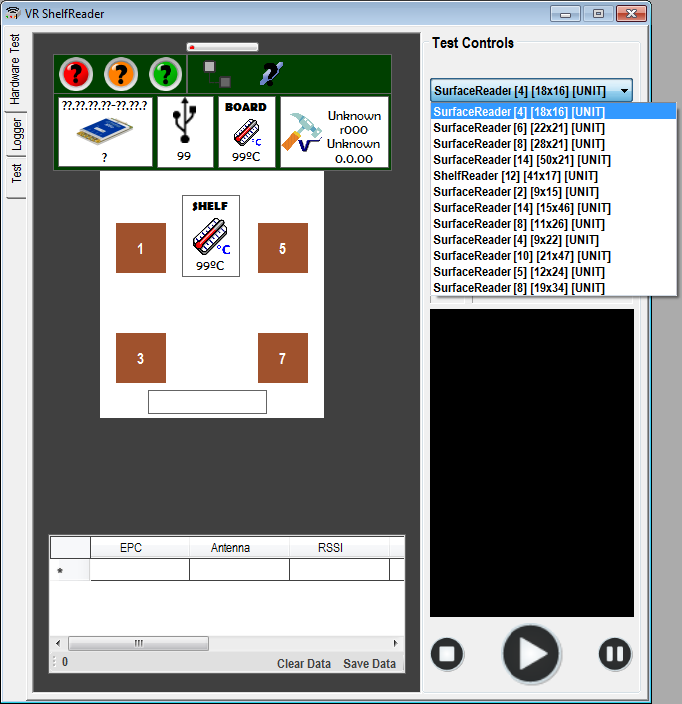

Select VR Devices from the Start Menu, this will bring up the VRDevices App. When the VR Device interface window appears, select the appropriate test from the drop down under the Test Controls section:

Physical Connections to Devices

Before proceeding, make sure all the physical connections are made between the Test PC and the Test Device.

Running the Test

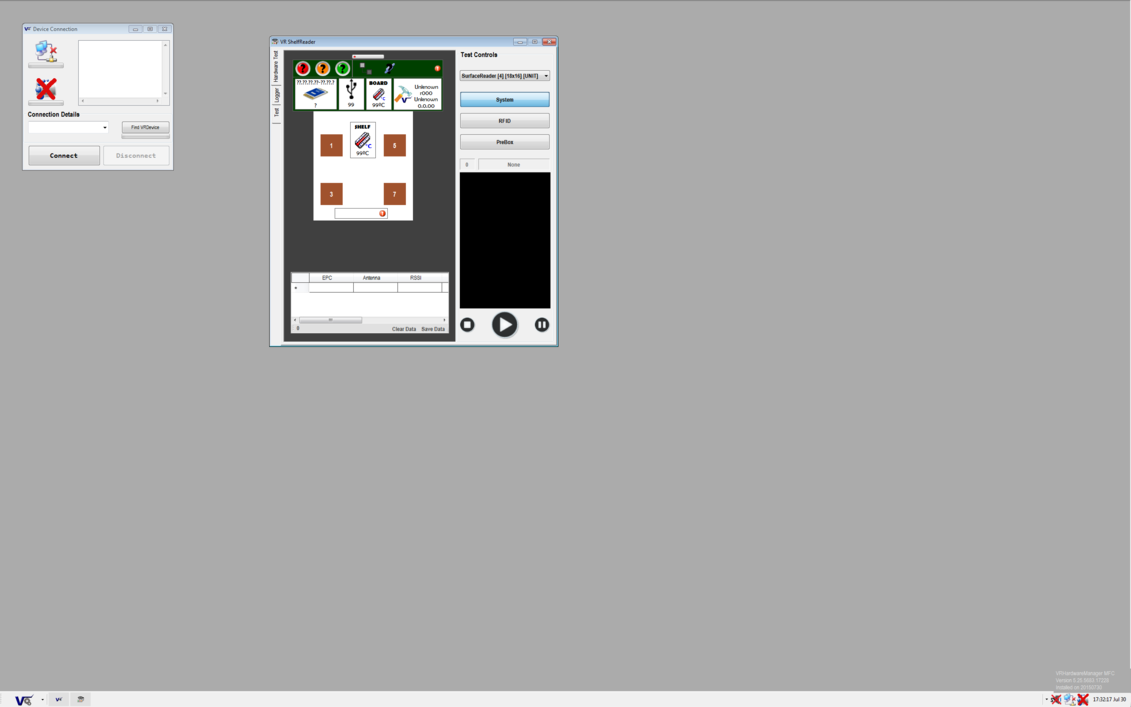

The interface for each different test is very similar and should look something like:

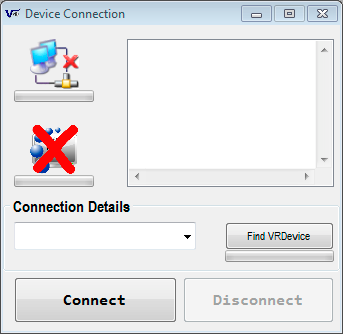

A small Device Connection window will also appear:

Click Find VRDevice twice, wait until the message Successfully discovered VRDevice... appears, then click Connect. Wait for both connections to be made, then proceed with the test.

To start the test, click the Play button in the bottom right of the VR Device interface:

And follow the prompts to finish the test.

Troubleshooting

Failing to Find Device

If clicking the Find VRDevice button twice does not result in the message: Successfully discovered VRDevice..., close and re-open the VR Hardware-Manager program and try again.

Failure to Establish Connection

If the Connect button does not successfully establish both connections (ports 2222 and 2020), make sure all cables are fully plugged into their ports, then close and re-open the VR Hardware-Manager program and try again.

Test Failed

If the test fails for any reason, close and re-open the VR Hardware-Manager program and try running the test again. If the test continues to fail, attach a VR Quality Issue document to the asset and set it aside.
