VR8PortReader
Jump to navigation
Jump to search
SecondRun Scripts[edit | edit source]
VR8 / V2 VR8[edit | edit source]
wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/vr-am33v2-linuxboard/vr-8port-secondrun.sh -O - | sh
VR8C / V2 VR8C / V2 VR8DC[edit | edit source]
wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/vr-am33v2-linuxboard/vr-8port-gps-secondrun.sh -O - | sh
V3 VR8 / V3 VR8D[edit | edit source]
wget http://readonly:secret@svn.crm.ventureresearch.com/svn/linux/testing/vr-am33v2-linuxboard/vr-8port-v3-secondrun.sh -O - | sh

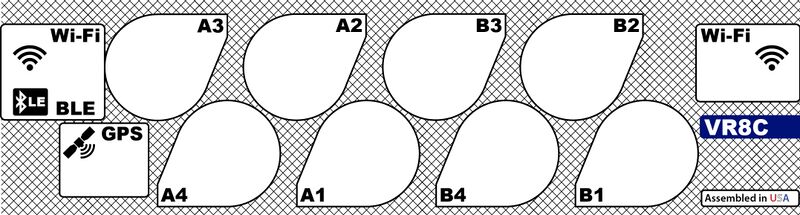

Antenna Configurations[edit | edit source]
| V2 VR8 MUX | M6e-a | 1 | 2 | 5 | 6 | 9 | 10 | 13 | 14 |
|---|---|---|---|---|---|---|---|---|---|
| V3 VR8 / V4 VR8 MUX | M6e-Micro | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Port | - | A1 | B1 | A2 | B2 | A3 | B3 | A4 | B4 |
| Tag ID on Test Feature | - | 1 | 5 | 2 | 6 | 3 | 7 | 4 | 8 |
Special Instructions[edit | edit source]
VR8 with 4.4p[edit | edit source]
check for newer m6e hwversion: 18.00.00.04
RFID HWVERSION
apply fix for low tag read distance if the board has a POE module
SET TARI 6.25 SET BLF 640khz COMMIT
